istio访问异常问题处理

发表于 分类于

问题简述

通过istio实现灰度发布，浏览器访问报404错误，但是通过curl传递一个Host请求头就能访问成功。

问题复现

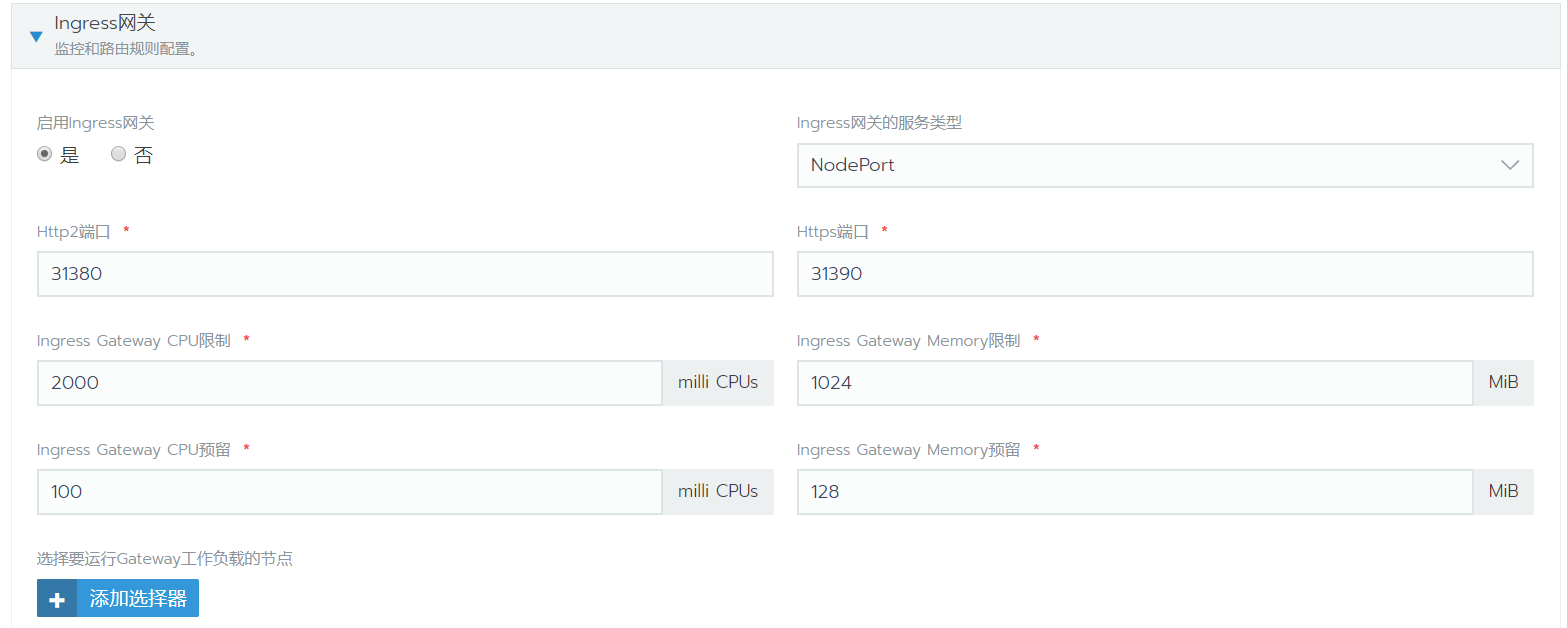

Rancher UI界面启动Istio，并开启ingress网关

enable-istio

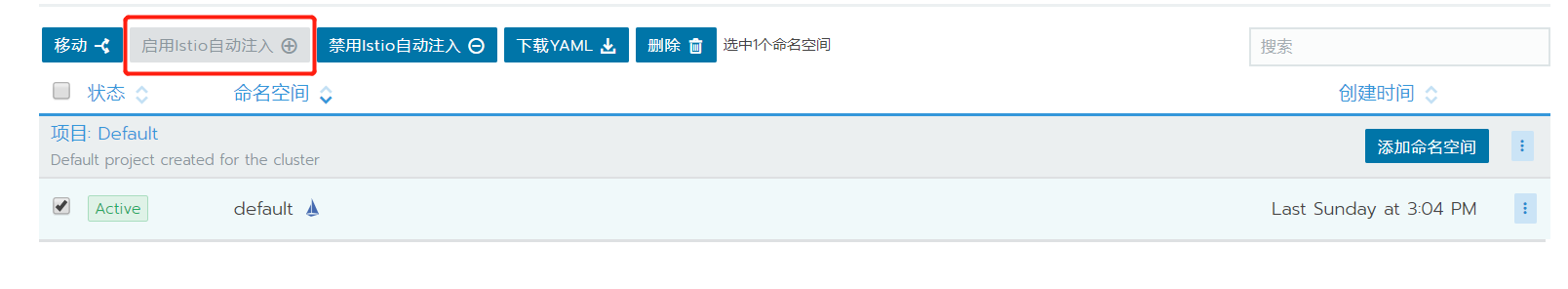

命名空间启动Istio自动注入

ns-istio-injection

部署nginx应用

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
###deploy-nginx-v1.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: nginx
    version: v1
  name: nginx-v1
  namespace: default
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx
      version: v1
  template:
    metadata:
      labels:
        app: nginx
        version: v1
    spec:
      containers:
      - image: satomic/nginx:v1
        imagePullPolicy: IfNotPresent
        name: nginx
        ports:
        - containerPort: 80
          name: 80tcp02
          protocol: TCP
---
##deploy-nginx-v2.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: nginx
    version: v2
  name: nginx-v2
  namespace: default
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx
      version: v2
  template:
    metadata:
      labels:
        app: nginx
        version: v2
    spec:
      containers:
      - image: satomic/nginx:v2
        imagePullPolicy: IfNotPresent
        name: nginx
        ports:
        - containerPort: 80
          name: 80tcp02
          protocol: TCP
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app: nginx
    service: nginx
  name: nginx
  namespace: default
spec:
  ports:
  - name: 80tcp02
    port: 80
    protocol: TCP
    targetPort: 80
  selector:
    app: nginx
  type: ClusterIP
---
##gw.yaml
apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
  name: mynginx-gateway
  namespace: default
spec:
  selector:
    istio: ingressgateway # use istio default controller
  servers:
  - hosts:
    - 'web1.com'
    port:
      name: http
      number: 80
      protocol: HTTP
---
##vs-nginx.yaml
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: nginx
  namespace: default
spec:
  gateways:
  - mynginx-gateway
  hosts:
  - 'web1.com'
  http:
  - match:
    - uri:
        exact: /index.html
    route:
    - destination:
        host: nginx
        subset: dr-nginx-v1
      weight: 50
    - destination:
        host: nginx
        subset: dr-nginx-v2
      weight: 50
##dr-nginx.yaml
---
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: nginx
  namespace: default
spec:
  host: nginx
  subsets:
  - labels:
      version: v1
    name: dr-nginx-v1
  - labels:
      version: v2
    name: dr-nginx-v2
  trafficPolicy:
    loadBalancer:
      simple: ROUND_ROBIN

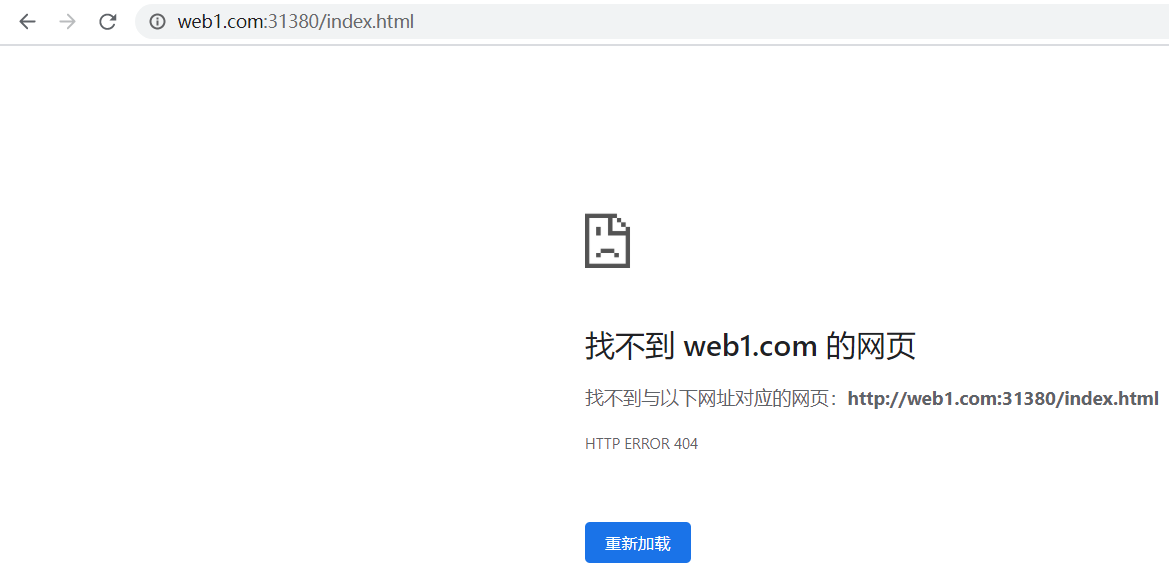

浏览器访问：http://web1.com:31380/index.html，访问报错

1
2
# windows添加主机映射，C:\Windows\System32\drivers\etc\hosts
172.16.0.211 web1.com

172.16.0.211 为访问主机，31380则是ingressGateway使用NodePort映射 端口

error-1

curl访问，直接curl访问失败，带上Host请求头，访问成功

1
2
# Linux添加主机映射，/etc/hosts
172.16.0.211 web1.com

ok-1

排查思路

查看默认发送的请求头

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
[root@node02 ~]# curl -v http://web1.com:31380/index.html
* About to connect() to web1.com port 31380 (#0)
*   Trying 172.16.0.211...
* Connected to web1.com (172.16.0.211) port 31380 (#0)
> GET /index.html HTTP/1.1
> User-Agent: curl/7.29.0
> Host: web1.com:31380
> Accept: */*
>
< HTTP/1.1 404 Not Found
< date: Wed, 29 Apr 2020 04:28:41 GMT
< server: istio-envoy
< content-length: 0
<
* Connection #0 to host web1.com left intact

可以看到请求的Host是web1.com:31380，而我们virtualservice的hosts写的是web.com，所以请求的地址不对，自然就没法访问

问题处理

既然请求的Host不对，那么就要修改成相对应的Host才能访问，可以有以下几种处理方式。

1 请求头(Request Header)手动指定Host字段

如果是应用内部自己调用，例如代码或者脚本，可以手动指定Host请求头，但是这种就无法再浏览器上访问

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
[root@node02 ~]# curl -v -H Host:web1.com http://web1.com:31380/index.html
* About to connect() to web1.com port 31380 (#0)
*   Trying 172.16.0.211...
* Connected to web1.com (172.16.0.211) port 31380 (#0)
> GET /index.html HTTP/1.1
> User-Agent: curl/7.29.0
> Accept: */*
> Host:web1.com
>
< HTTP/1.1 200 OK
< server: istio-envoy
< date: Wed, 29 Apr 2020 04:37:21 GMT
< content-type: text/html
< content-length: 7
< last-modified: Wed, 25 Mar 2020 15:18:37 GMT
< etag: "5e7b764d-7"
< accept-ranges: bytes
< x-envoy-upstream-service-time: 1
<
app v2
* Connection #0 to host web1.com left intact

2 在VirtualService中设置authority来支持port访问

istio目前暂时还不支持直接添加DOMAIN+PORT，可以通过设置authority来支持PORT访问

在gateway和virtualservice设置hosts为"*"，并在virtualservice设置authority

1
2
3
4
5
6
7
8
9
10
11
12
## gateway
spec:
  - hosts:
    - '*'
---
## virtualservice
spec:
  hosts:
  - '*'
  http:
    - authority:
        exact: "web2.com:31380"

完整示例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
##gw.yaml
apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
  name: mynginx-gateway
  namespace: default
spec:
  selector:
    istio: ingressgateway # use istio default controller
  servers:
  - hosts:
    - '*'
    port:
      name: http
      number: 80
      protocol: HTTP
---
##vs-nginx.yaml
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: nginx
  namespace: default
spec:
  gateways:
  - mynginx-gateway
  hosts:
  - '*'
  http:
  - match:
    - uri:
        exact: /index.html
      authority:
        exact: "web2.com:31380"
    route:
    - destination:
        host: nginx
        subset: dr-nginx-v1
      weight: 50
    - destination:
        host: nginx
        subset: dr-nginx-v2
      weight: 50

kubectl apply刷新配置后，就可以在浏览器上访问了

ok-2

并且我们也可以看到，Host请求头是web1.com:31380，如果使用web1.com Host请求头访问，则会失败

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
[root@node02 ~]# curl -v http://web1.com:31380/index.html
* About to connect() to web1.com port 31380 (#0)
*   Trying 172.16.0.211...
* Connected to web1.com (172.16.0.211) port 31380 (#0)
> GET /index.html HTTP/1.1
> User-Agent: curl/7.29.0
> Host: web1.com:31380
> Accept: */*
>
< HTTP/1.1 200 OK
< server: istio-envoy
< date: Wed, 29 Apr 2020 05:34:12 GMT
< content-type: text/html
< content-length: 7
< last-modified: Wed, 25 Mar 2020 15:18:37 GMT
< etag: "5e7b764d-7"
< accept-ranges: bytes
< x-envoy-upstream-service-time: 1
<
app v2
* Connection #0 to host web1.com left intact
[root@node02 ~]# curl -v -H Host:web1.com http://web1.com:31380/index.html
* About to connect() to web1.com port 31380 (#0)
*   Trying 172.16.0.211...
* Connected to web1.com (172.16.0.211) port 31380 (#0)
> GET /index.html HTTP/1.1
> User-Agent: curl/7.29.0
> Accept: */*
> Host:web1.com
>
< HTTP/1.1 404 Not Found
< date: Wed, 29 Apr 2020 05:34:25 GMT
< server: istio-envoy
< content-length: 0
<
* Connection #0 to host web1.com left intact

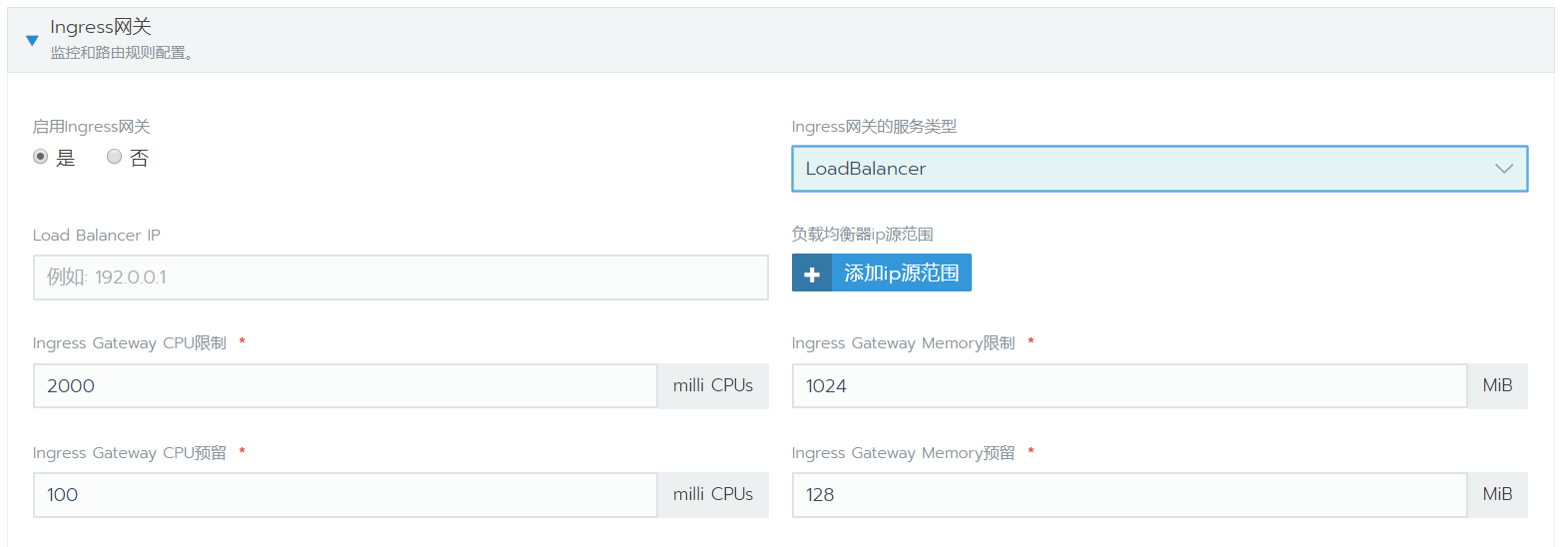

3 设置ingressGateway使用LoadBalancer

ingressGateway使用LoadBancer，设置好对应的地址即可

use-loadbalancer

参考

相关issue参考：https://github.com/istio/istio/issues/11828

官方istio VirtualService设置选项：https://istio.io/zh/docs/reference/config/networking/virtual-service/#HTTPMatchRequest
